Single Screw Floating Fish Food Maker Machine Electric 250kg/H Cat Wet Bird Pet Parrot Tilapia Catfish Fish Dog Pellet Feed Food Make Machine to Used
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | MIKIM |
| Sertifika: | CE |
| Model numarası: | 65,70,75,85,95,120,136 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 Takım |
|---|---|
| Fiyat: | $1500.00 - 9500.00/ Set |
| Ambalaj bilgileri: | Ahşap ihracat paketi ile paketlenmiş veya konteyner ile yükleme |
| Teslim süresi: | 7-10 iş günü |
| Ödeme koşulları: | L/C, D/A, T/T, Western Union, D/P |
| Yetenek temini: | Ayda 300 takım |
|
Detay Bilgi |
|||
| Voltageaacity: | 380V50Hz | Isıtma Kaynağı: | Elektrik |
|---|---|---|---|
| Kullanım kılavuzu: | İngilizce versiyon | Kalıba dökmek: | 6 set kalıp |
| dönüştürücü: | ABB,LS,Delta | Güç: | 15-45Kw |
| Ürün adı: | evcil hayvan maması ekstrüderi | İşçinin gerekli: | 1 ~ 2 işçi |
| İnverter markası: | Delta.Siemens. Delta.Siemens. LG LG | İnveter: | ABB |
| Ücretsiz kalıp: | 6 Takım | ||
Ürün Açıklaması

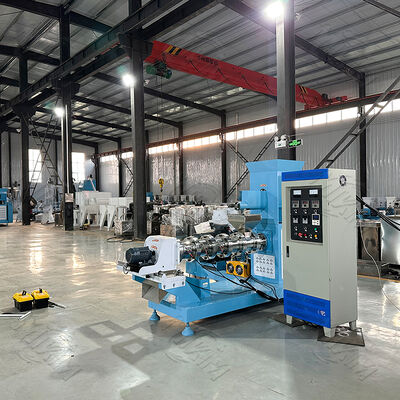

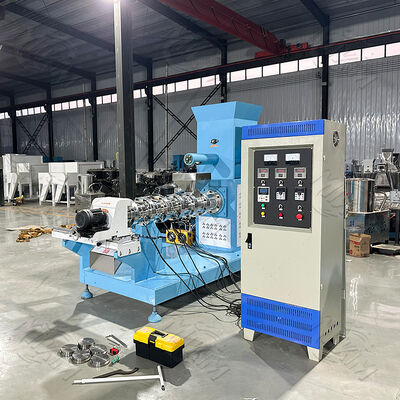

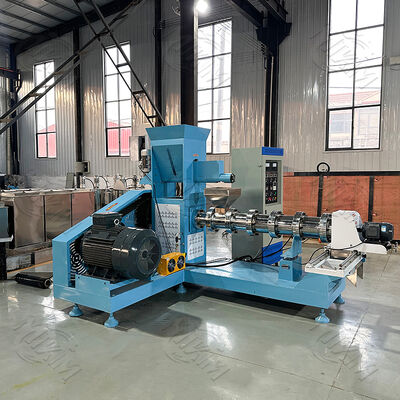

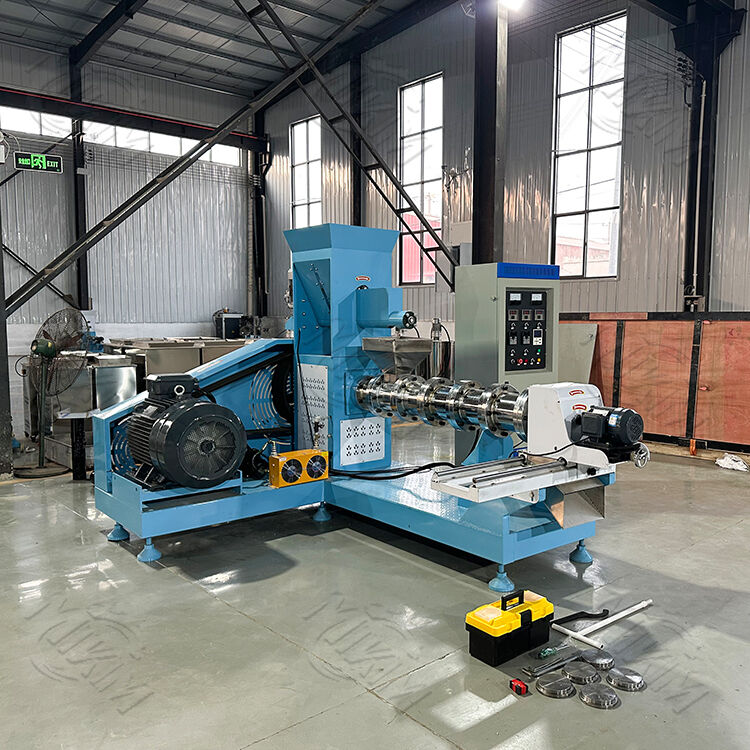

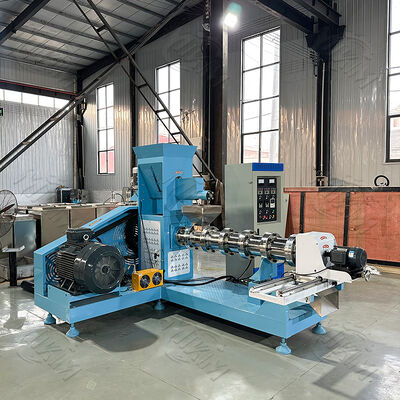

Single Screw Floating Fish Food Maker Machine
Electric 250kg/H Cat Wet Bird Pet Parrot Tilapia Catfish Fish Dog Pellet Feed Food Make Machine
Product Overview
Single screw floating fish feed pellet extruder machine is feed extrusion equipment designed for producing various shapes with customizable molds. The product outlet features a variable frequency rotary cutting device that allows adjustment of blade rotation speed to control cutting speed and length. This feed extruder machine offers high output and stable operation, with main components made of alloy materials and refined through heat treatment for high wear resistance and long service life.
Applications
- Uses corn, soybean (bean cake), animal scraps, etc. as raw materials for producing feed with different pet flavors including dogs, cats, fish, birds, rabbits, shrimps, minks, and foxes
- Suitable for farmers and small to medium-sized feed factories
- Produces neatly formed, smooth feed that floats on water surface without sinking for over 12 hours, preventing water pollution and reducing fish diseases through sterilization
Key Features
- Controllable density for pet feed and aquatic feed
- Dry puffing process uses self-heating method without requiring steam system
- Screw design with powerful self-cleaning function
- Variable speed cutting head with adjustable gap between cutter and template
- Novel design, compact structure, and high production efficiency
Production Process
The extruded feed production line involves feeding raw materials into the single screw fish feed extruder machine through continuous mixing, conditioning (wet process), heating, pressurization, extrusion of die holes, sudden depressurization, and cutting into segments to create fluffy, porous particles. This high-temperature, high-pressure, instantaneous puffing process offers advantages over traditional pellet feed including improved feed maturation, higher conversion rate, better animal digestion and absorption rates, and enhanced safety through high-temperature treatment that promotes animal growth.
Technical Specifications
| Model | Capacity (t/h) | Main Power | Feeding Power | Screw Diameter | Cutting Power | Conditioner Power | Weight |
|---|---|---|---|---|---|---|---|
| DSP85 | 0.35-0.4 | 22kw | 1.1kw | 80 | 0.75kw | 1.5kw | 1000kg |
| DSP90 | 0.5-0.6 | 30kw | 1.1kw | 90 | 1.1kw | 2.2kw | 2000kg |
| DSP100 | 0.6-0.7 | 37kw | 1.1kw | 100 | 1.1kw | 3kw | 2100kg |
| DSP120 | 0.7-0.8 | 55kw | 1.1kw | 120 | 1.5kw | 3kw | 2200kg |
| DSP135 | 1.0-1.5 | 75kw | 1.5kw | 135 | 2.2kw | 5.5kw | 3200kg |
| DSP145 | 2.0-3.0 | 90kw | 2.2kw | 145 | 2.2kw | 7.5kw | 4000kg |
| DSP160 | 3.0-4.0 | 110kw | 2.2kw | 160 | 3kw | 11kw | 4500kg |
| DSP175 | 4.0-5.0 | 132kw | 3.0kw | 175 | 3kw | 15kw | 5000kg |
Application Range
Applicable animal types: aquatic products, poultry, pets, ornamental fish. Feed Type: Amino Acids, Soybean Meal, Grain, Straw, Green Feed
- Production of various aquatic feed and special aquatic feed including floating fish feed, turtle feed, frog feed, bullfrog feed, crab feed, and lobster feed
- Production of pet food in various shapes and tastes including dog food, cat food, rabbit food, mink food, and fox ration
- Production of fishing bait feed, rubber band granules, hollow bait granules, nesting granules, and small yellow noodles
About Tianjin Mikim Company
Established in 1989, Tianjin Mikim is a professional manufacturer of extrusion puffing equipment. Our company has gathered industry experts with rich experience and remains committed to research and development of extrusion puffing equipment. We provide comprehensive intelligent equipment solutions to help customers achieve goals of reducing energy consumption, improving quality, and enhancing efficiency.
We specialize in commercial efficiency of extrusion puffing machinery, including twin-screw puffers, single-screw puffers, and other puffing equipment. Our focus extends to aquatic and pet food puffed feed production line research and development. Our core competitiveness lies in delivering high efficiency, superior quality, and outstanding performance through excellent puffing technology.
